How many times have you been in a situation where “something” has changed or stopped working and the only thing to resolve the issue would be to rever to a previous configuration?
This has happened to me many times, such as changing the configuration on the wrong switch port and running the instrinctive “wr” or “write memory” (Cisco) command to only realise the port you just changed was for the CEO! This is where a configuration backup has saved my backside more than I can count and I would urge everyone in this field to make sure you backup your configurations regularly.
Backup routines are boring tedious tasks!
You are not wrong. So lets automate them! Also check out my other automation posts!
In this post I am going to review a python script which I use to automate the backup of the network configurations within my organisation. To determine if this script is suitable it will need to perform the following functions:
- Connect to the device using either SSH or Telnet
- Save the running configuration to startup configuration
- Copy the running configuration to a TFTP server
This script will also need to be compatiable with the following devices:
- Cisco 3850 series switches
- Cisco 9300 series switches
- Cisco ASA5508-X Firewalls
- Cisco ASA5525-X Firewalls
- Cisco Nexus 7009 switches
- Cisco MDS switches
- Cisco 2921 routers
Python requirements:
To use this backup script you will need to have the following :
- Python 3
- Netmiko/Paramiko
- TFTP Server (I use TFTPD)
The Python script:
import paramiko
import netmiko
import sys
def copyConfiguration(tftp_server, tftp_directory, device_name):
print(" Copying Configuration... ", end="")
sys.stdout.flush()
command = f'copy running-config tftp://{tftp_server}/{tftp_directory}/{device_name}.conf'
output = net_connect.send_command_timing(command)
while( ']' in output or ')' in output or '!' in output ):
if("nter vrf" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
output = net_connect.send_command_timing('management')
continue
if("ource filename" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
continue
if("remote host" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
output = net_connect.send_command_timing('\r\n')
continue
if("estination filename" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
output = net_connect.send_command_timing('\r\n')
continue
if("opied" in output or "omplete" in output or "uccessful" in output):
break
print("COMPLETE")
#Arguments
device_name = sys.argv[1]
device_ip = sys.argv[2]
tftp_server = sys.argv[3]
tftp_directory = sys.argv[4]
device_username = sys.argv[5]
device_password = sys.argv[6]
enable_password = sys.argv[7]
device_protocol = sys.argv[8]
if(device_protocol == "ssh"):
target = {
'device_type': 'cisco_ios',
'ip': device_ip,
'username': device_username,
'password': device_password,
'port' : 22, # optional, defaults to 22
'secret': enable_password, # optional, defaults to ''
'verbose': False, # optional, defaults to False
}
else:
target = {
'device_type': 'cisco_ios_telnet',
'ip': device_ip,
'password': device_password,
'port' : 23, # optional, defaults to 22
'secret': enable_password, # optional, defaults to ''
'verbose': False, # optional, defaults to False
}
print("### Starting software backup of " + device_name + " (" + device_ip + ")")
net_connect = netmiko.ConnectHandler(**target)
net_connect.enable()
print(" Saving Configuration")
net_connect.save_config()
copyConfiguration(tftp_server, tftp_directory, device_name)
Breaking down the script:
To run the backup script you will need to use the following parameters:
- device_name
- device_ip
- tftp_server
- tftp_directory
- device_username
- device_password
- enable_password
- device_protocol

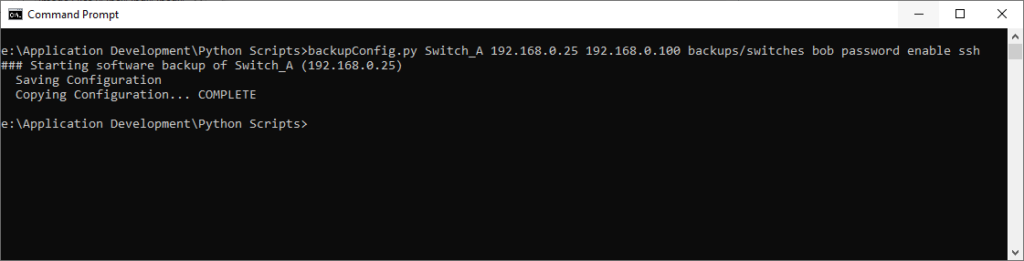

The script is then executed with the following command:
./backupConfig.py Switch_A 192.168.0.25 192.168.14.60 backups/switches bob password enable sshOr if you wish to use telnet use this:
./backupConfig.py Switch_A 192.168.0.25 192.168.14.60 backups/switches bob password enable telnet
Whilst testing, I found that the initial copy command runs best with a send_command_timing function as this will allow for a longer delay between executing the command and retrieving the output.
while( ']' in output or ')' in output or '!' in output ):
if("nter vrf" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
output = net_connect.send_command_timing('management')
continue
if("ource filename" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
continue
if("remote host" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
output = net_connect.send_command_timing('\r\n')
continue
if("estination filename" in output):
if("opied" in output or "omplete" in output or "uccessful" in output):
break
output = net_connect.send_command_timing('\r\n')
continue
if("opied" in output or "omplete" in output or "uccessful" in output):
break
print("COMPLETE")To capture all the prompts from the copy run-configuration tftp command I use a loop which is checking the output for the required text. You may notice I skip the first character as this could be capitalised and it’s quicker to leave this character out than it to convert the string to lower case.
So this is how I backup the configuration from each device within my organisation. In future posts, I will document the script I use to compile a list of devices from a MySQL database, build a log from the backup process and copy the configuration files to a centralised area.
If anyone has ideas on how to improve the script, please comment below.
